Solar DC Cables

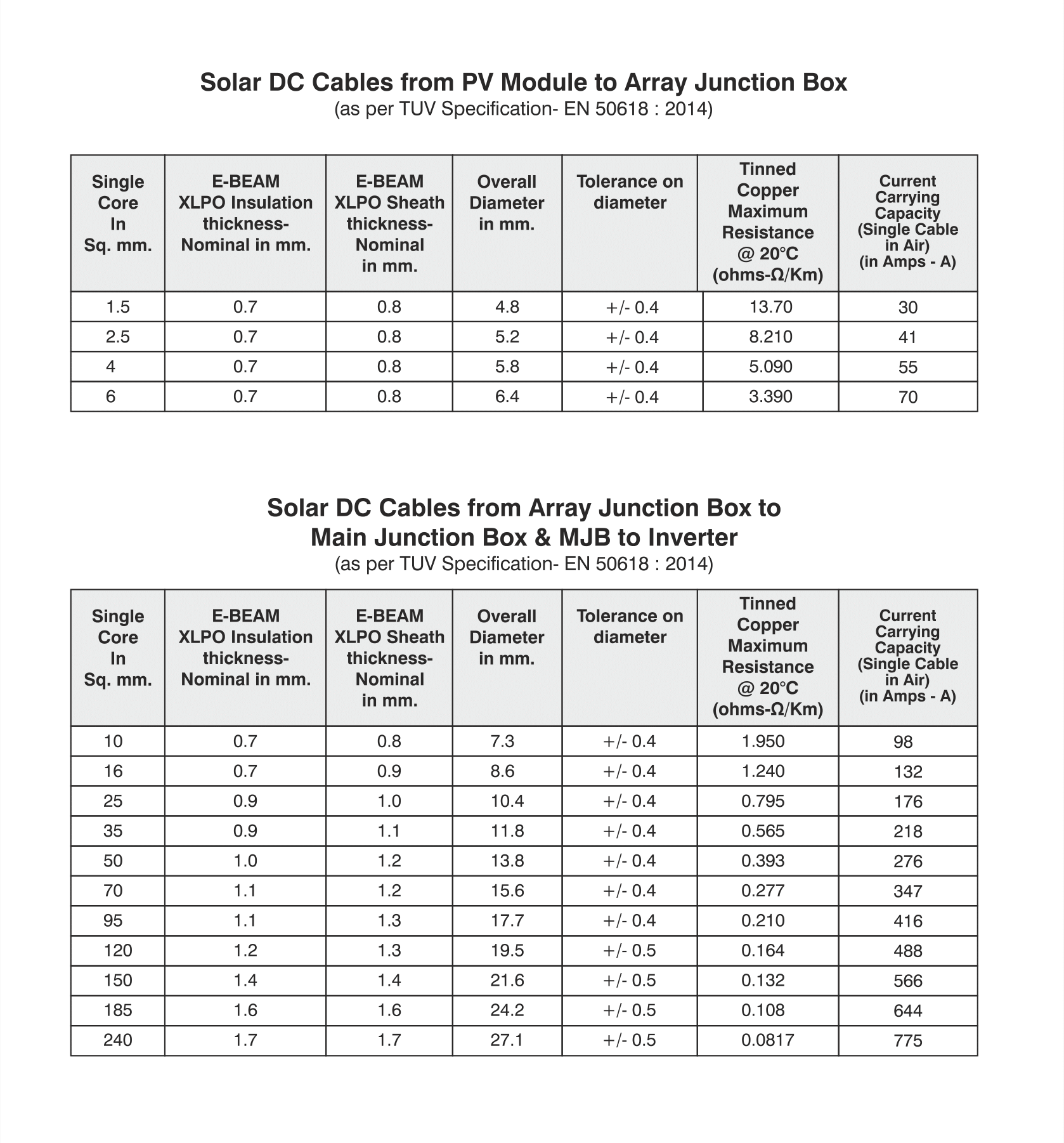

Solar DC Cables Technical Specification

Construction

  • Conductor: Tinned copper conductor IEC 60228, Class 5
  • Insulation/Sheath: Electron beam cross-linked halogen free & flame retardant compound (XLPO)

Electrical

  • Voltage Test: 6500V as per EN 50395
  • Max Permissible Operating Voltage: DC 1.5kV (non-earthed system)
  • Nominal Voltage: AC 0.6/1kV, DC 900/1.5kV

Temperature

  • Ambient Temperature: -40°C to +90°C
  • Max Conductor Temperature: 120°C

Maximum Bending Radius

  • 5 × OD (Fixed Installation)
  • 15 × OD (Occasional Movement)

Standards & Material Properties

  • Fire Performance: IEC 60332-1-2
  • Smoke Emission: IEC 61034 / EN 50268-2
  • Halogen Free: EN 50267-2-1/-2, IEC 60754-2
  • Toxicity Index: EN 50305, ITC Index < 3
  • Ozone Resistant: EN50396
  • Weathering UV: HD 605/A1 or DIN 53367
  • Approvals: EN 50618; H1Z2Z2-K
